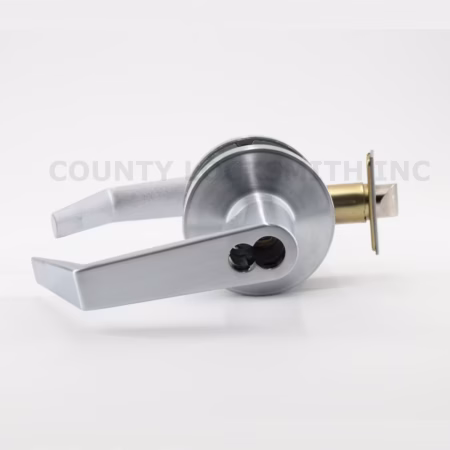

PDQ GP115 PHL 626 Schlage Full Size Interchangeable Core Classroom Function

Specifications:

• For Doors:  1-3/7 to 1-3/4 thick, lock is preset to 1-3/4 thick from factory.
• Application:  Through door thru-bolt. Fits 160 and 161 door prep.
• Chassis:  Heavy duty diecast, investment cast, cold rolled steel, stainless steel mechanism.
• Front:  2-1/4  x  1-1/8 or 2-1/4  x  1″.   Stainless steel or Wrought brass.  Beveled 1/8 on 2″.
• Strike Plate: ANS standard. Stainless steel.
• Lever Style:  Philadelphia
• Rose:  3-3/8 diameter wrought.
• Latchbolt;  1/2 inch throw.
• Hand:  Non handed.
• Keys: Non must order FSIC cores separately.
• Keyway:  FSIC aka Schlage Full Size Interchangeable Core. Core cylinder sold separate.
• Finish:  US26D aka 626 finish.
• Certifications:
  • UL listed 3 hrs for doors up to 4’0″  x  8’0″.
  • Certified to ANSI/BHMA 156.2 grade 2
  • Complies with ADA (American with Disability Act) and ICC/ANSI for Accessible and Usable Buildings.
• Warranty:  Manufacture 8 Year Limited Warranty.
