ACSI Power Transfer Hinge 4.5 X 4.0 with 1/4 Radius 26D

Original price was: $195.00.Current price is: $125.00.

UL rated power transfer hinge AKA ETH hinge.

Size 45. X 4.0 with 1/4 radius
Finish 26D
Wires 4 wires 26ga

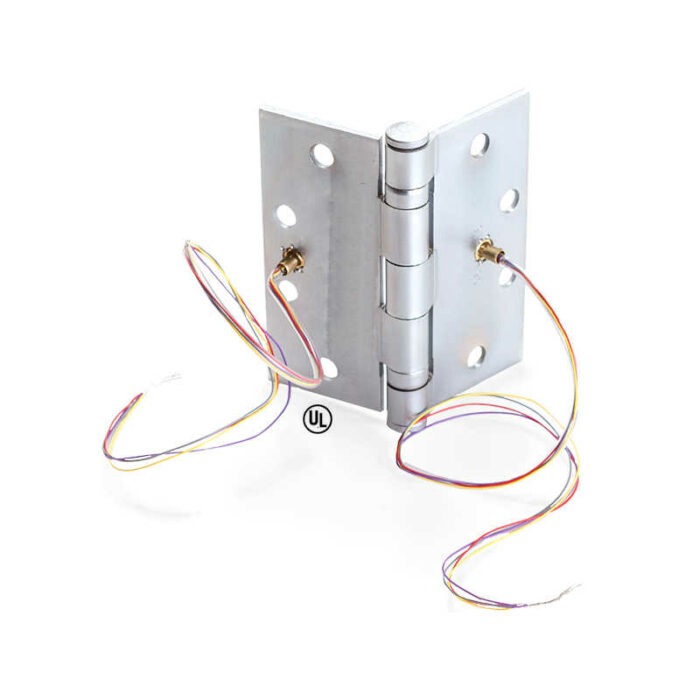

Not this picture does not show radius corner and is just for illustration.

Out of stock

SKU: ACSI-1104-4540-4W26G-R14-26D Categories: , ,

Description

ACSI power transfer hinge 4.5 X 4.0 1/4 radius with 4 wires.

ACSI Series 1100 Electric Hinges/Pivots are designed for doors that require concealed low voltage power transfer, concealed electric monitoring or concealed low voltage power transfer with monitoring. ACSI Series 1100 products are UL Listed and carry a full one-year warranty.

Features

  • UL Listed
  • UL Fire Rating on steel and stainless steel hinges
  • All architectural finishes in sizes 4×4 through 6×6
  • Hinges/Pivots in stock for same-day shipments

Electrical Specifications

Concealed Electric Through-Wire

  • 22ga, 26ga, 28ga conductors, 12 inch wire lead length both sides
    • 3.5A continuous @ 50VAC/VDC
    • 16A pulse @ 50VAC/DC
      • 400msec maximum pulse-width
      • 10sec minimum off-time between pulses
  • 18ga conductors, 12 inch wire lead length both sides
    • 10A continuous @ 50VAC/VDC
    • 20A inrush @ 50VAC/DC for 4sec

Additional information

Weight 2 lbs
Dimensions 4 × 4 × 8 in
Color

26D, US10B Oil Rubbed Bronze
