Description

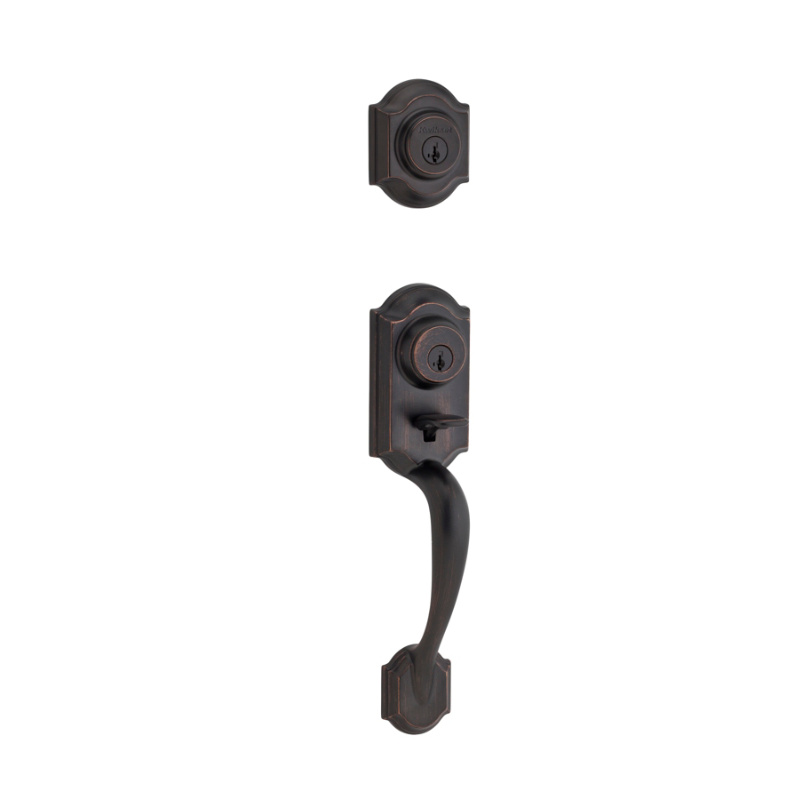

Kwikset Montara 553MNH LIP 11P SMT

Kwikset’s Signature Series MONTARA
Handleset with double cylinder deadbolt in Venetian Bronze finish. This is the exterior pack only and needs interior pack to complete. MONTARA has superior security features Smart Re-Key technology with BumpGuard™ Technology to Protect Against Lock Bumping. Has elegant style and finish and is Lifetime Mechanical• Lifetime Finish warranty.

Specification

• ANSI/BHMA Grade 1 Certified 980 Deadbolt
• SmartKey® Re-Key Technology with BumpGuard™ Technology to Protect Against Lock Bumping* Elegant Styles And Finishes
• Unique Rustic Finishes
• Traditional to Contemporary Styles Warranty
• Lifetime Mechanical
• Lifetime Finish

Door Prep

• Deadbolt: Cross Bore 2-1/8″ or 1-1/2″. Edge Bore 1″. Latch Face 1″ x 2-1/4″.
• Handle: Cross Bore 2-1/8″. Edge Bore 1″. Latch Face 1″ x 2-1/4″.

Backset

• Deadbolt: Adjustable to 2-3/8″ or 2-3/4″.
• Handle: Adjustable to 2-3/8″ or 2-3/4″.

Door Size

• Door: 1-3/4″ doors standard. 2-1/4″ doors optional.
• Thickness: 1 3/4” standard. Not designed for use on 1-3/8″ doors.

Strikes

• Deadbolt: 1-1/4″ x 3-5/8″. Specify round corner or square corner. Others options available.
• Handle: 2-1/4″ full lip. Specify round corner or square corner. Other options available.

Bolt

• Deadbolt: 1” throw.
• Handle: 1/2″ throw.

Other

• Cylinder: SmartKey or Pin & Tumbler.
• Faceplate: 1″ x 2-1/4″. Specify round corner, square corner or drive-in.
• Door Handing: Reversible for right or left-hand doors.
• ANSI/BHMA: Deadbolt is Grade 1 Certified. Montara Deadbolt is Grade 2 Certified.
• ADA: N/A
• UL: Optional 1/3 hour UL fire rating for all functions except 802 and 502.
