Description

Adams Rite 3111-36 Fire Rated Exit Device

Features:

• Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design
• Pushbar clad or anodized, not plated, in a variety of finishes
• Also available in top rod only version

Specifications:

3100 Series Certifications:

• UL Panic-Fire Exit Hardware, up to 3 hrs
• UL 308 Panic Hardware
• California State Fire Marshall
• New York City MEA*
• Warnock/Hersey Listing

8100 Series Certifications:

• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA*

*Consult Factory for specific number

Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed. Lever Entry Trim is field reversible.

Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30” to 44”.

Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.

Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.

Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.

Projection: 2-15/16” when fully projected, 1-15/16”when dogged.

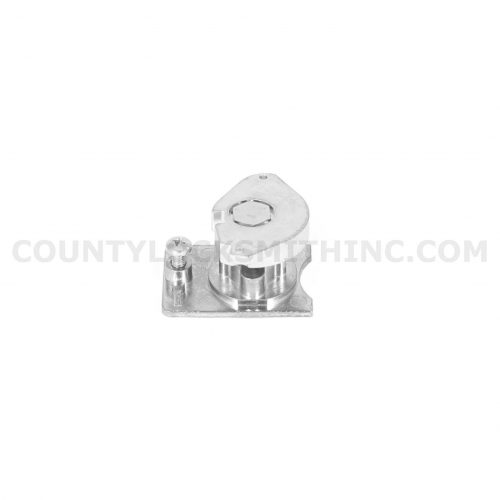

Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.

Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.

Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.

Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.

3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)

Warranty: Five year limited.

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. For wood frames, an additional plate is supplied for securing the header strike. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Top Rod Only: The surface vertical rod exit device is also available with a single vertical rod on top. Specify by adding “T” after exit device number.

Options and Accessories

Silent Electrification Motorized Latch Retraction: The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive.

Electric Latch Retraction: The LR option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. LR Option is not available on rim type exit devices (see EL option).

Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36″. Cannot be ordered with other exit device options.

Request to Exit (REX) – Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.

Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.

Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.

Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.

Available Finishes: 313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless.
