Description

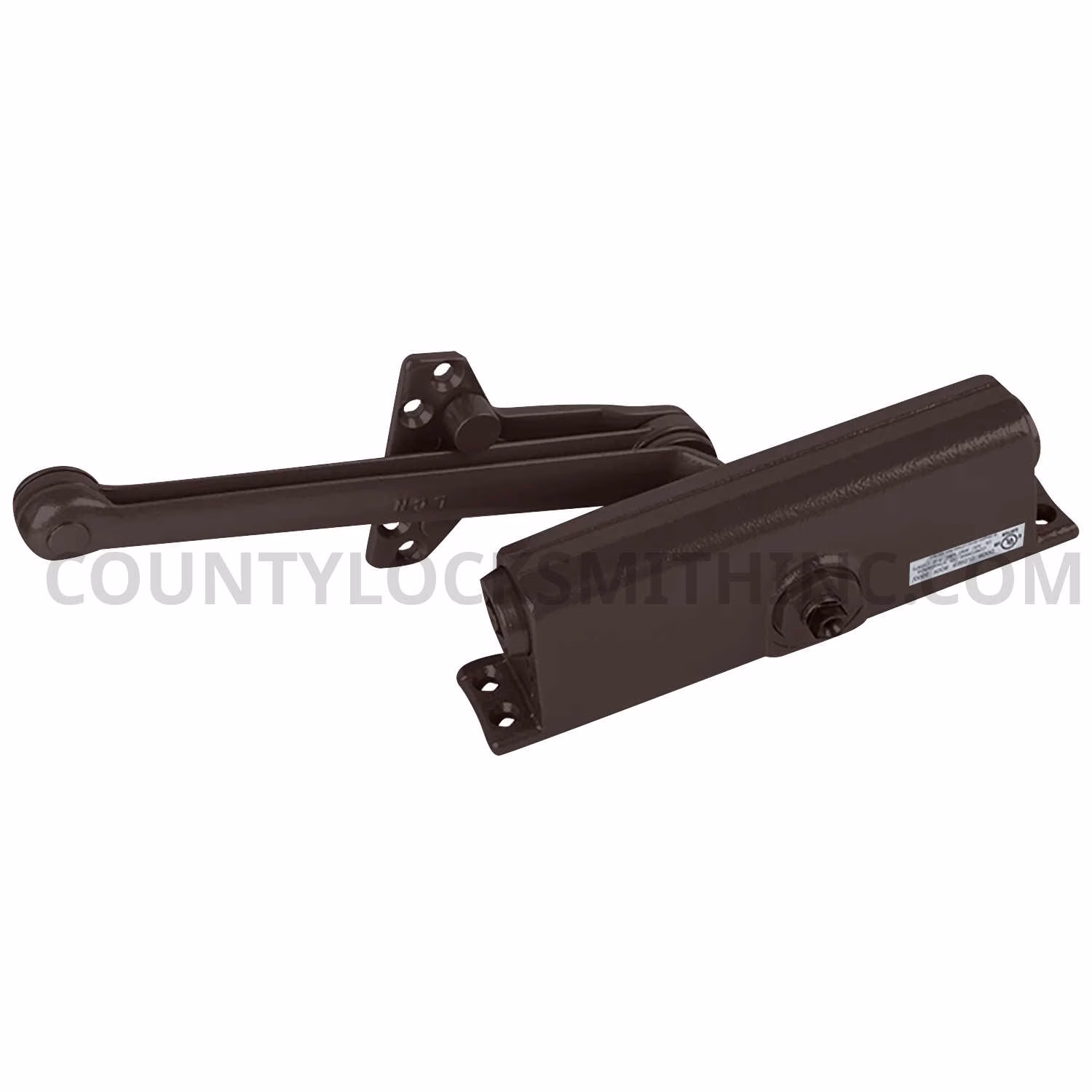

The LCN 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-5 and mounts to the most common commercial footprint. The 1260 also features a complete line of regular and extra duty arms and LCN’s peel-n-stick installation

Include: 3071 cylinder, 3077 Cush and stop arm and installation screws.

• UL and cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.4, grade one
• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series Pages 8-9 for options here.
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”.
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors.
• Mounts to most common commercial footprint (3/4” x 9 1/16”).
• Closer meets ADA requirements. See 1260 Series page 10.
• Optional Quick Fix™ bracket kit.
• Standard or optional custom powder coat finish.
• Optional SRI primer for installations in corrosive conditions.
• Optional Slim Line cover.

Optional Accessories

COVER
1260-72 Optional, non-handed, slim line plastic cover.

PLATE 1260-18
-Required for hinge side mount where top rail is less than 2 1/2” (64 mm).
-Required for top jamb mounting where head frame is less than 1 3/4” (44 mm) or flush ceiling condition exists.
-Plate requires minimum 1 1/2” (38 mm) minimum top rail or 1 1/4” (32 mm) head frame

PLATE 1260-18PA
-Required for parallel arm mounting where top rail is less than 4 3/8” (111 mm), measured from the stop.
-Plate requires 1 3/4” (44 mm) minimum top rail.

QUICK FIX™ BRACKET KIT 1260-18QF
-Optional kit includes retro-fit mounting plates for closer cylinder and shoe.
-Useful in applications when previously drilled holes are damaged.

CUSH SHOE SUPPORT 1260-30
-Provide anchorage for fifth screw used with CUSH arms where reveal is less than 3 1/16” (78 mm).

BLADE STOP SPACER 1260-61
-Lowers parallel arm shoe to clear 1/2” (13 mm) blade stop

AUXILIARY SHOE 1260-62A
-requires a top rail of 7” (178 mm).
-Optional shoe replaces -62PA for parallel arm mounting of regular arm with overhead holder/stop.
-Special template required.

PA FLUSH PANEL ADAPTER 1260-419
-Provides horizontal mounting surface for PA, EDA or CUSH shoeon single rabetted or flush frame.
